Doors

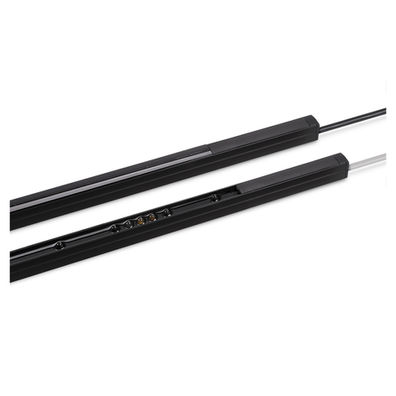

Light Curtains

Product Information



The safety light curtain is specifically designed for door industry applications, meeting current standards. Its compact
housing and sequential beam isolation allow for direct installation in the door frame, effectively covering the leading edge. A newly developed encapsulation protects the electronic components, ensuring vibration resistance and an IP67-rated high level of protection. Unlike traditional light curtains, this design eliminates the risk of condensation within the
enclosed air volume, enhancing durability and reliability.

Product Specification

  • 1-12 metres sensing range

  • 20 to 53 parallel scanning beams

  • Active height of 1800 mm & 2340 mm

  • Length of 1970 mm & 2510 mm

  • 3 different channel placement models

  • Automatic sensitivity adjustment

  • Colour-coded M8 plug pigtail with extension cables

  • Micro aluminium IP67 profile design

  • Fully encapsulated electronics

  • Power, output and system status indicators

  • 12-30 V dc supply voltage

  • OSE output

  • Static blanking function

  • EN 12978 compliant

  • TÃœV Nord approved as E-device acc. EN 12453

Light Curtains

Product Data

Technical Data




SGT (Transmitter)

SGR (Receiver)

Supply voltage

10-30 Vdc

10-30 Vdc

Max. Voltage ripple

15% (within supply range)

15% (within supply range)

Reverse polarity protected

Yes

Yes

Max. current consumption

70 mA (RMS)

35 mA

Output

-

5V 900Hz square signal

Max. output load

-

2 KΩ

Max. capacitive load

-

100nF

Short circuit protected

-

Yes

Inductive load protection

-

Yes

Sensing range

1 m – 12 m


Response time (max.) (*)

40 ms


(*) Independent on model
