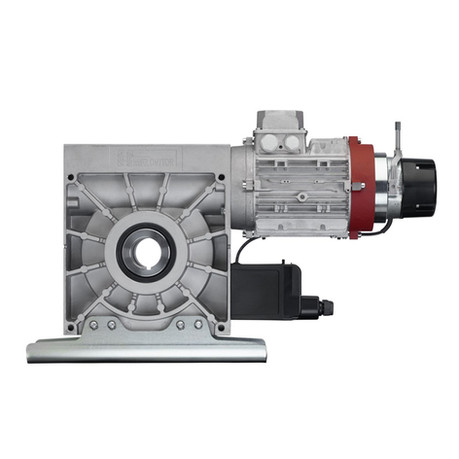

MDF 60-100-9

MDF Operators

Enhance your roller shutters with MDF 60-100-9, featuring integral safety gear, thermal protection, high torque motor, and IP environment protection for reliable performance.

Product Specification

Integral Safety Gear.
Floor Level Handchain or Handcrank Overrides.
Safety Interlock Switch for Manual operation.
Integral Thermal Protection.
I.P. Environment Protection.
AWG Electronic Limits.
Phosphor Bronze Worm Wheel.
High Starting Torque Industrial Duty Motor.

Contact Sales

Back to Products

Product Information

Power	Kw	1.1
Torque	Nm	1000
Output Speed	R.P.M	9
Protection Rating	IP	54
Current	Amps	6.9
Power Supply	V	400V 3ph 50 Hz
Manual Override		KU or KE
Hollow Bore	mm	50
Cycles per hour (max)		20
